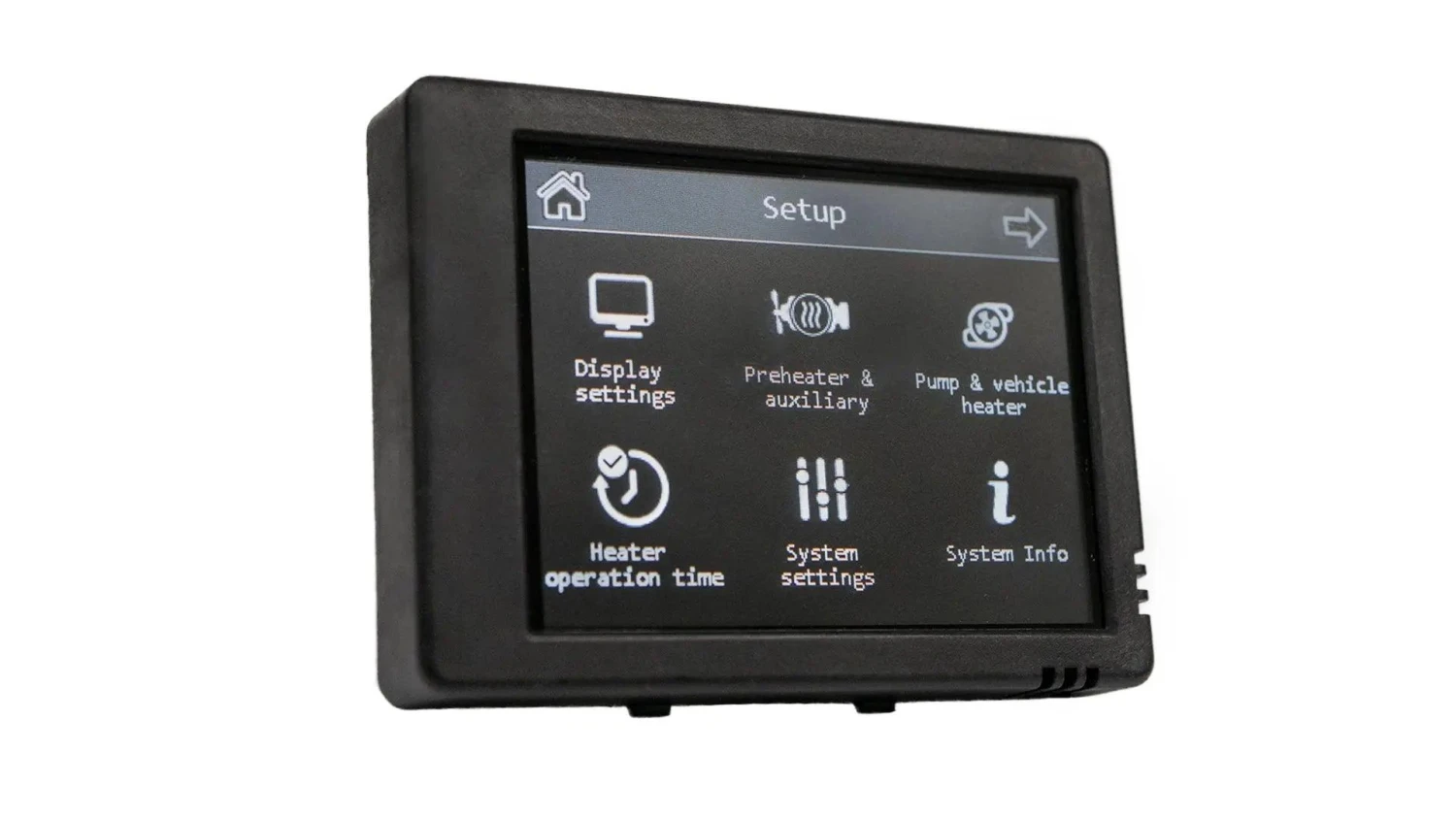

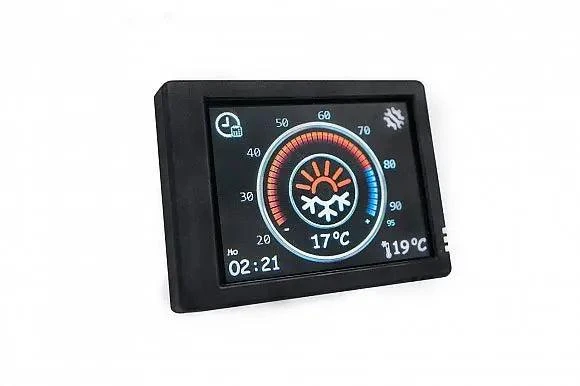

Autoterm Diesel Air Heater Touch Screen PU-28

The PU-28 Control Panel is an advanced touchscreen device that provides complete control over any AUTOTERM heater.

Using a 2.8” touchscreen display, the control panel is easy to navigate and use, even for those who are not tech-savvy.

The display allows to easily monitor and adjust the following:

• current temperature.
• adjust heating settings.
• set timers.
• much more.

Additionally, it has advanced settings that allow you to customize the heating system to different specifications by choosing between:

• Power
• Temperature
• Ventilation
• Heating+Ventilation
• Thermostat(for Flow series – water heaters) mode

The PU28 Control Panel offers a user-friendly interface that’s available in multiple languages, making it accessible to users all over the world.

• THERMOSTAT MODE – The heater will operate till the specific temperature is reached, then shut off the combustion process and ventilation. The heater will turn back on once the temperature drops by a specific amount.

Made in Latvia – Made in EU

• TEMPERATURE MODE – The heater will maintain the set temperature by reducing the heating power and shut off the combustion process when the top delta value is reached, without switching off the heater’s fan.

Feature Comparison	PU-5	PU-28	Comfort Control
Power mode	✓	✓	✓
Temperature mode	✓	✓	✓
Ventilation mode	✓	✓	✓
Heating + Ventilation mode	✓	✓	✓
LED status	✓		✓
Built in temperature sensor		✓	✓
Timers		✓	✓
Display		✓	✓
Touchscreen function		✓
Multi-language		✓	✓
Informative UI		✓	✓
Thermostat mode for AIR Series			✓
Thermostat mode for FLOW series		✓	✓
Quick access button		✓	✓
Heater maintenance reminder			✓
Vehicle battery safety function			✓
Dimensions (mm)	50x36x20	77x67x14	82x37x19
