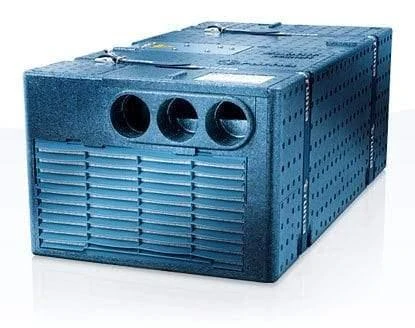

Truma Saphir Comfort Air Conditioning System

• Extremely powerful, yet also very quiet
• The lightest in its class

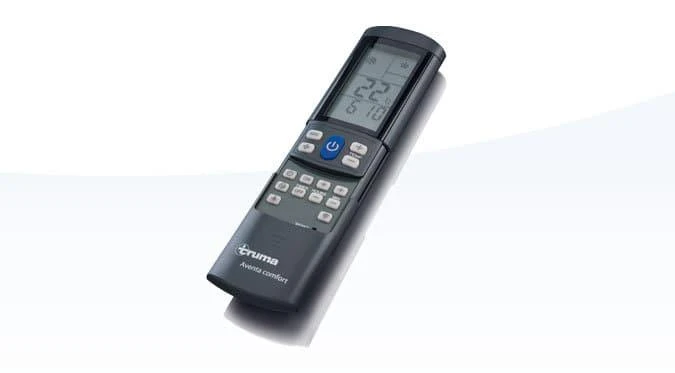

• Convenient remote control
• Practical timer function for automatic switching on or off
• For vehicles up to approx. 6.5 m

Operating voltage 230 V to 240 V~,50 Hz Current consumption Cooling 4,2 A (230 V) Current consumption Heater – – 3,7 A Cooling power (W) 2400 Cooling power (BTU) 8200 Volumetric air flow max. max. 380 m3/h Refrigerant circuit R 407c Range of use (degrees Celsius) 16 °C to 40 °C Energy Efficiency Rate (ERR) 2,4 Weight 23,5 kg Dimensions (L x W x H) 628 x 400 x 290 mm

• 2400 W of cooling power for optimum air cooling and humidity reduction
• Ideal for allergy sufferers thanks to the pollen filter that is fitted as standard
• Cooling time of up to 15 hours can be programmed in advance
• Completely maintenance-free thanks to the closed refrigeration circuit

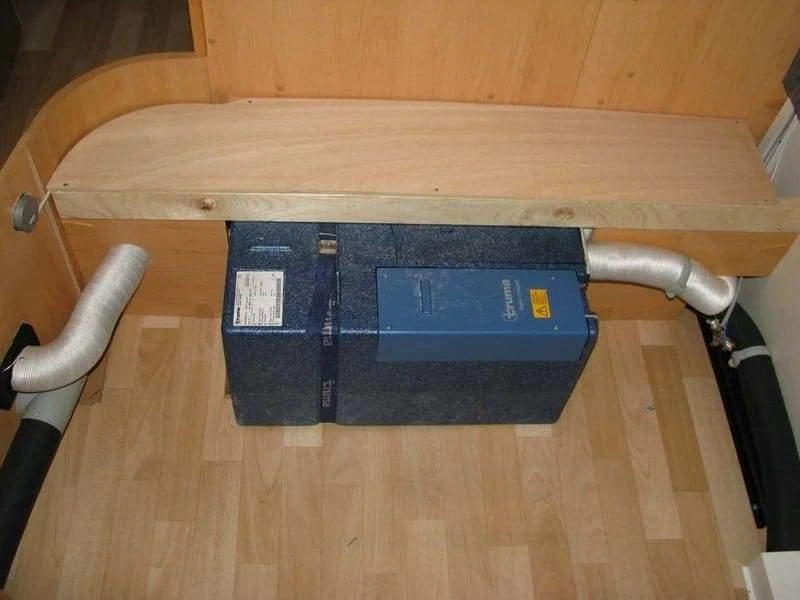

• Better vehicle handling because of the way the air conditioning system is installed close to the floor

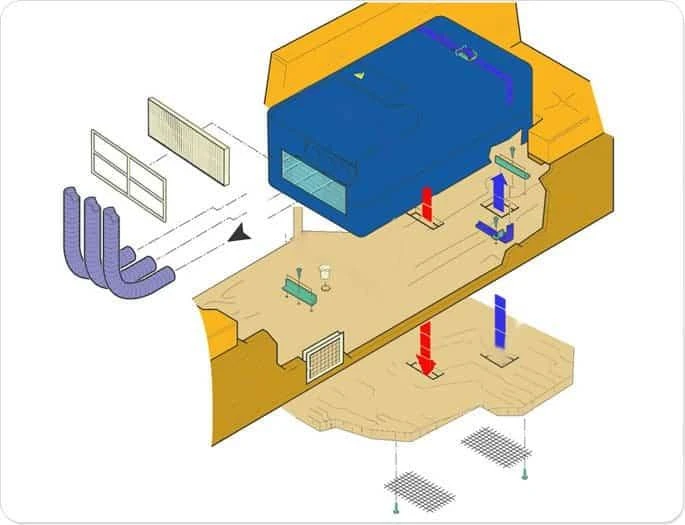

Installation- and Operating instructions

10.803,09 KB

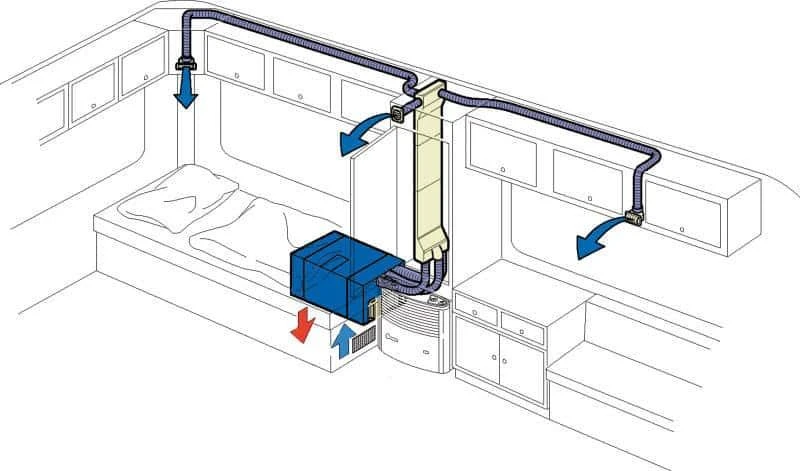

Ducting must be ordered separately (by the metre). All other parts are complete in the installation kit.
