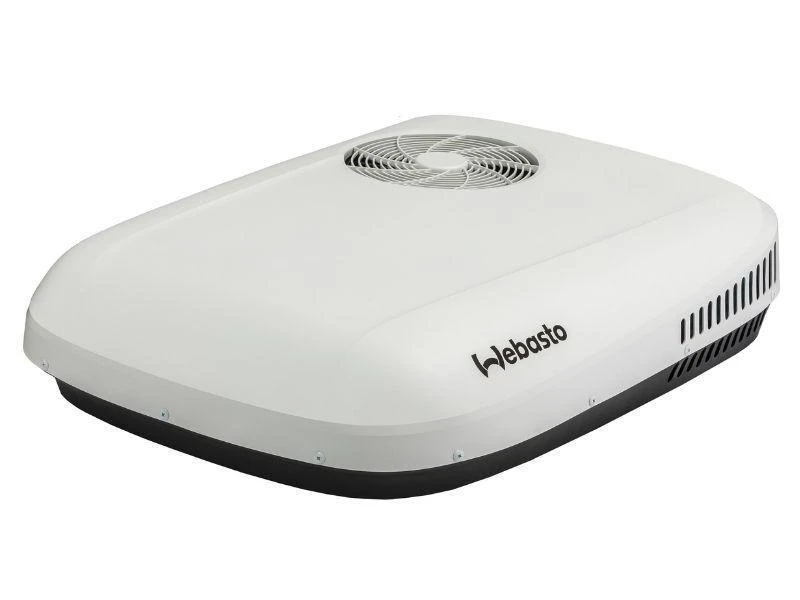

Webasto Roof Aircon – Cool Top Trail 34 – 3400w Cooling 45kg

Webasto RV Air Conditioners are new to the market, but Webasto have been at the forefront of Commercial Vehicle air-conditioning for years. With several outstanding options including exceptional cooling capability, low noise and a trendy low profile contour style. Are sturdy, however still light-weight. they’re the proper investment to combat the cruel Australian climate.

Complete with a straightforward to use Remote Control that helps you to choose from heating, cooling, dry, sleep and timing functions. These functions permit your air-conditioning system to control effectively in temperatures as low as -5°C and as high as 50°C.
Webasto Air Conditioners have reverse cycle performance and are equipped with a 2 year Australia wide warranty and on-going technical support.

• Designed to start on a 2000W generator
• no soft start technology required
• Low noise and low vibration for a quiet operation
• High quality twin rotary Sanyo compressor

Operates in temperatures as low as -5°C and as high as 50°C

• Cooling capacity up to 3400W
• Heating capacity to 3000W

• Reverse cycle air-conditioner with a three speed fan
• Easy to remove and clean Airfilter
• Strong and lightweight UV stabilised cover

Nominal Voltage (V) / Frequency (Hz)

• 220-240/50

Rating Cooling (kW)

• 3.4

Rated Heating (kW)

• 3.0

Rated Current Cooling / Heating / Max (A)

• 5.8/5.4/7.4

Unit Net Weight Outdoor (kg)

• 45

Unit Net Weight Indoor (kg)

• 3

Operating Temperature Range (C)

• 5 to 50

Roof Thickness (mm)

• 25 to 70

Rooftop Cut-out

• 360mm x 360mm or 400mm x 400mm – Universal

Dimensions Outdoor

• 1122 x 850 x 223 (L x W x H mm)

Dimensions Indoor

• 575 x 556 x 49 (L x W x H mm)

What voltage are the units available in?

The units are available as a 230V system.

What components are supplied?

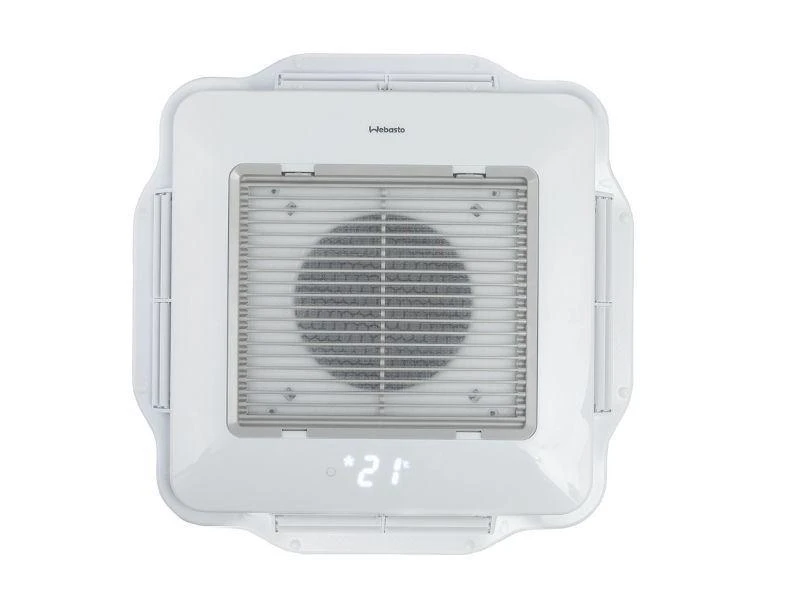

The units have two parts, internal unit (plenum) & outdoor unit. The system is pre gassed and comes with a remote control.

What are the cooling capacities of the units?

The CTT34 has cooling capacity of 3.4kW & heating capacity of 3kW.

What is the air flow volume of the unit?

 CTT34 374 m³/h

How many fan speeds does the evaporator have?

3 fan speeds, Low, Medium & High with Auto & Manual function.

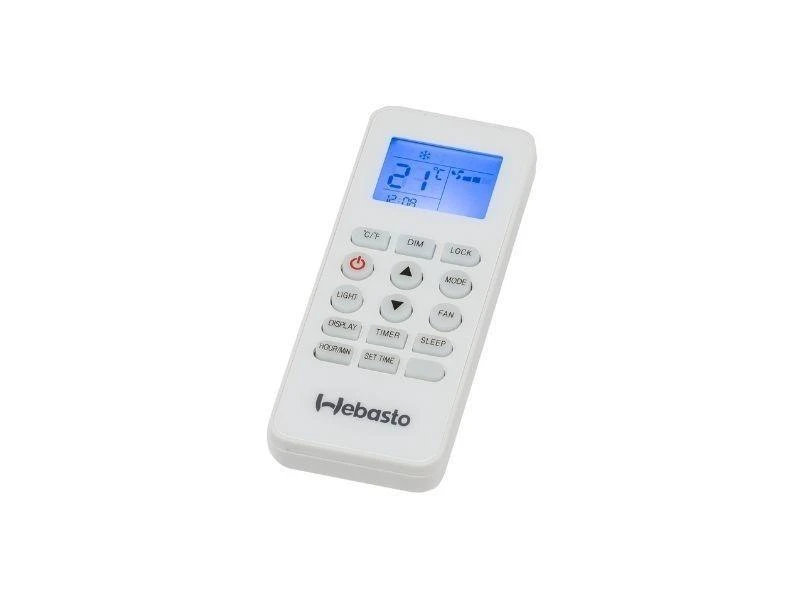

Does the unit come with a remote?

Yes, an Infra red remote control. The remote control does not require any programming. In case of interchanging of vehicles, the remote control will still operate.

What type of Compressor does the unit have?

SANYO double rotors compressor

How heavy is the unit?

CTT34 Outside 45kg, Inside 3kg

What are the dimensions of the units?

CTT34 – Outside 1,122 x 850 x 223mm; Inside 575 x 556 x 49mm

Do I need to have the unit serviced?

No particular service is required however: As regular maintenance, run the unit for 30 minutes once every 6 months. Also, check & clean (or replace if required) return air filter periodically. We suggest to change the filter annually. Keep the roof clean, avoid build-up of leaves & dirt etc.

CAUTION Never drive through automatic car washes with a roof air conditioner installed. Do not spray into the openings of the unit with a high-pressure cleaner. Do not use hot cleaners and steam cleaners. Do not use sharp or hard objects for cleaning. Never use petrol, diesel, solvents or aggressive cleaning agents
